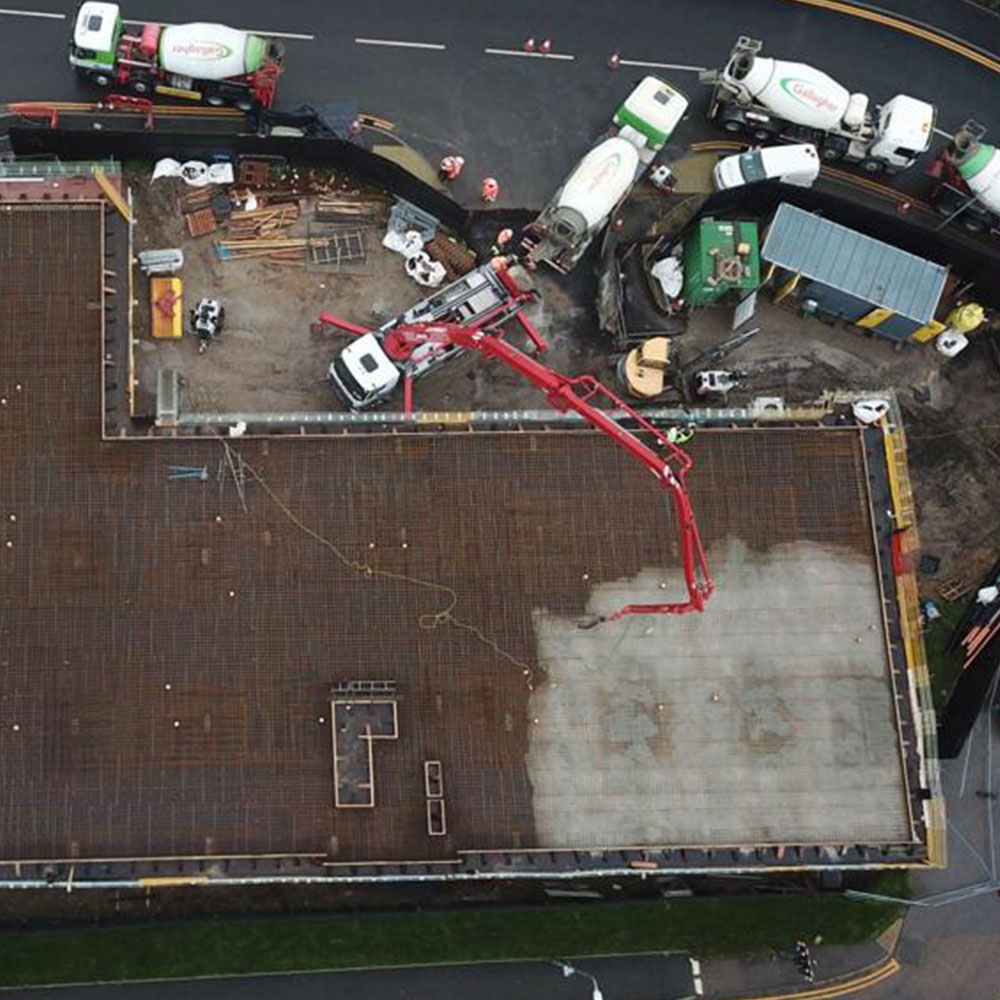

M32 Truck Mounted Concrete Pump

The Zenith 5Z32m is designed with boom 5 sections with “Z” folding type. The Zenith 5Z32 thanks to a minimum boom opening of 6.3 m only and pipeline Ø 125 mm is the ideal solution for city areas of difficult access where medium size concrete pumps have difficulties in placing and operating boom. The 5Z32 is the best solution for medium-small jobsites dimension: works indoor and outdoor, galleries or whatever is request a limited placing space. The pump can be easily maneuvered and operates also in any residential building thanks to the assembly on truck 3 axles and wheelbase 3.900 – 4.200 mm. Has a total truck length of 9.8m and a high output pump of 130m3/h.

Boom M32
Vertical Reach – 32m
Horizontal Reach – 28m
Depth of Reach – 22m
Unfolding Height – 6m
Number of sections – 5
Folding System – Z- Fold
Support width (Front) – 6.3m
Support width (Rear) – 6m
